Connecting Xenia Data to Power BI

Overview

Xenia exposes a JSON API that Power BI's built-in Web connector can call directly using your API key and secret — sent as request headers. No middleware, no custom connector, no third-party tool required.

What you can pull into Power BI:

• Submission records from checklists and forms
• Task and work order data
• Pre-aggregated reporting analytics (completion rates, compliance, flagged items)
• Grid report exports

Before You Begin

You will need:

Key things to know:

• One key = one workspace. Each API key is permanently tied to the workspace it was created in.
• The key acts as a specific user. The data it can access is governed by that user's role and location membership. Create a dedicated integration user with full location access for complete data.
• Credentials are shown once. The client secret displays a single time on creation — save it immediately in a secure location. It cannot be retrieved later.

Step 1 — Create Your API Credentials

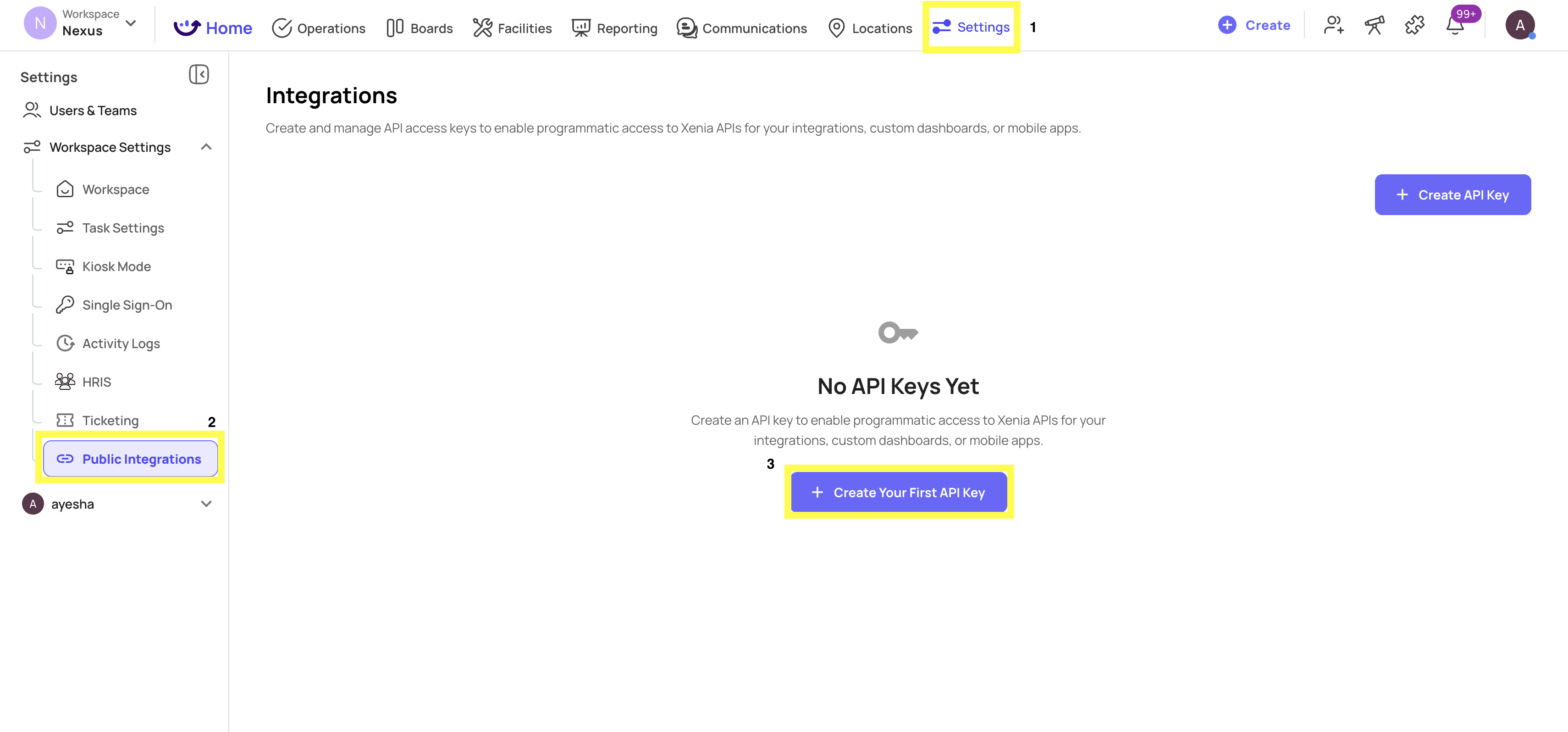

1. In the Xenia web app, go to Settings → Public Integrations
2. Create a dedicated integration user — e.g. powerbi-integration@yourcompany.com — with an Admin or Owner-level role and membership at all locations you want in Power BI

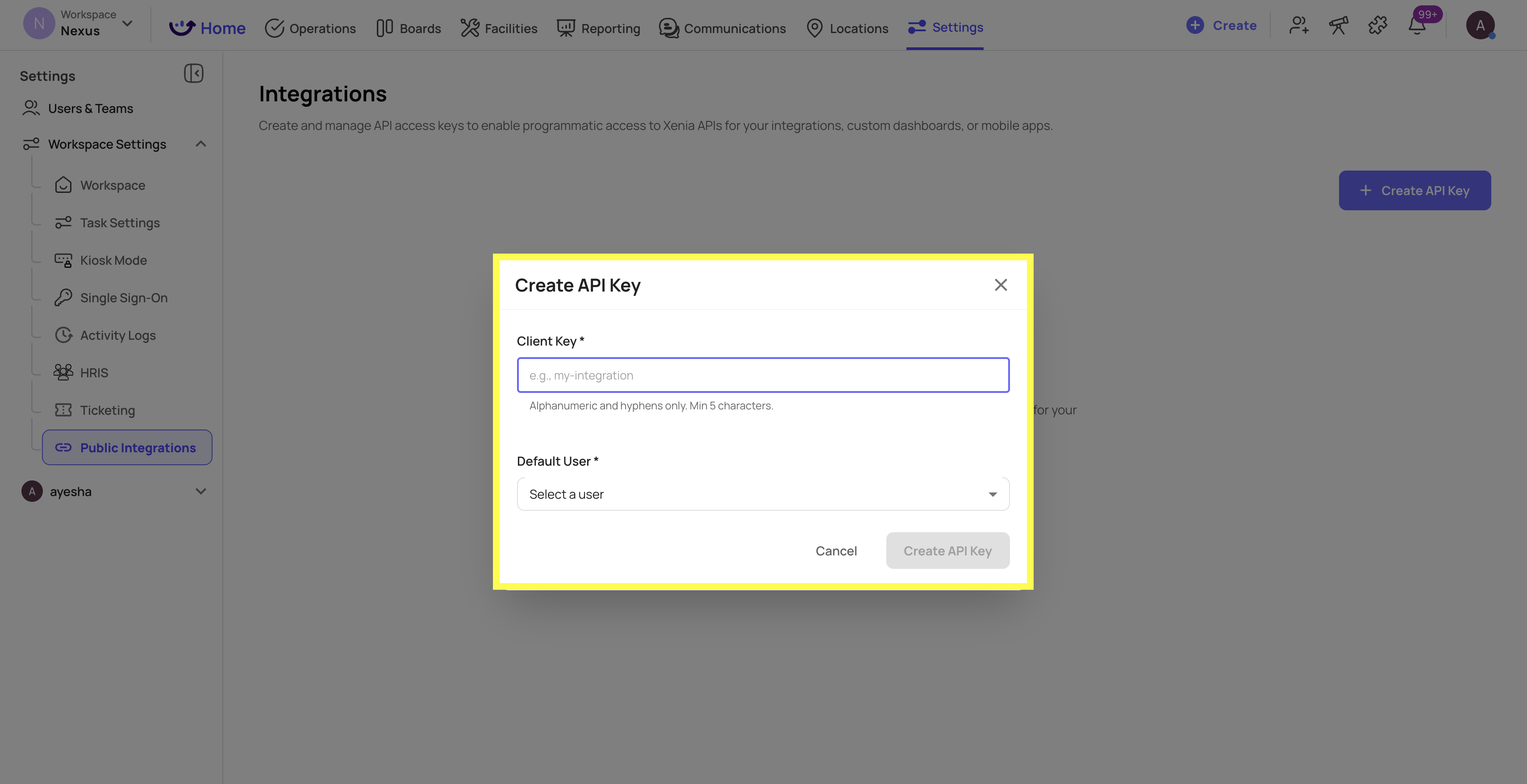

3. In Public Integrations, click to create a new API key:
   • Enter a client key — an identifier of your choosing (letters, numbers, hyphens; minimum 5 characters), e.g. powerbi-reporting. This is your x-client-key.
   • Choose the integration user as the default user the key will act as
4. When created, Xenia generates and displays the client secret once — copy it now and store it securely. This is your x-client-secret.

You'll also need your Workspace ID for task/work order endpoints — it's the UUID in your Xenia web address bar (app.xenia.team/workspace/**<workspace-id>**/...).

Step 2 — Verify Your Credentials (Recommended)

Before opening Power BI, confirm the credentials work with a quick command-line test:

curl -X POST "https://api.xenia.team/api/v1/ops/template-submissions" \
  -H "x-client-key: YOUR_CLIENT_KEY" \
  -H "x-client-secret: YOUR_CLIENT_SECRET" \
  -H "Content-Type: application/json" \
  -d '{"fromDate":"2026-01-01","toDate":"2026-01-31","limit":5}'

• JSON response with a data array → credentials are working
• 401 Invalid client credentials → key or secret is wrong
• 403 Forbidden: API key not authorized for this route → check the URL path for typos

Key Facts About the API

Available Data Endpoints

All endpoints use base URL https://api.xenia.team/api/v1.

Submission Data

/ops/template-submissions request body (all optional): fromDate, toDate, checklists, statuses, locations, users, searchText, offset, limit, includeItems (set false for lighter payloads without per-question detail).

Task & Work Order Data (replace {workspaceId} with your Workspace ID)

Reporting Analytics (all POST, all require View Reporting capability)

Filter field names differ by endpoint — an unrecognized field name is silently ignored (no error, just unfiltered results). Match field names exactly from the endpoint documentation.

Grid Reports (requires Advanced Dashboards + View Reporting)

Note: the spreadsheet endpoint returns an Excel file, not JSON. For live/refreshable reporting, the JSON endpoints above are the better choice.

Step 3 — Connect from Power BI

Because the Xenia API uses custom headers (not a built-in Power BI auth type), set the connection's credential type to Anonymous — authentication travels in the headers themselves.

Store credentials as parameters (recommended)

1. In Power BI Desktop: Home → Transform data to open Power Query Editor
2. Manage Parameters → New Parameter. Create two Text parameters:
   • ClientKey — paste your client key
   • ClientSecret — paste your client secret
3. Optionally create a WorkspaceId parameter

Example A — Submission records (most common)

let
    BaseUrl = "https://api.xenia.team",
    Body = Json.FromValue([
        fromDate = "2026-01-01",
        toDate = "2026-01-31",
        limit = 5000,
        offset = 0
    ]),
    Response = Web.Contents(
        BaseUrl,
        [
            RelativePath = "/api/v1/ops/template-submissions",
            Headers = [
                #"Content-Type" = "application/json",
                #"x-client-key" = ClientKey,
                #"x-client-secret" = ClientSecret
            ],
            Content = Body
        ]
    ),
    Parsed = Json.Document(Response),
    Rows = Parsed[data],
    Table = Table.FromList(Rows, Splitter.SplitByNothing(), {"Submission"})
in
    Table

When prompted for credentials, choose Anonymous and Connect. Then expand the column to flatten submission fields.

Example B — GET endpoint (list grid reports)

let
    BaseUrl = "https://api.xenia.team",
    Response = Web.Contents(
        BaseUrl,
        [
            RelativePath = "/api/v1/mgt/grid-reports",
            Headers = [
                #"x-client-key" = ClientKey,
                #"x-client-secret" = ClientSecret
            ]
        ]
    ),
    Parsed = Json.Document(Response),
    Reports = Parsed[data][gridReports],
    Table = Table.FromList(Reports, Splitter.SplitByNothing(), {"Report"})
in
    Table

Example C — Task list (POST, Workspace ID in path)

let
    BaseUrl = "https://api.xenia.team",
    Body = Json.FromValue([]),
    Response = Web.Contents(
        BaseUrl,
        [
            RelativePath = "/api/v1/ops/workspaces/" & WorkspaceId & "/tasks/list",
            Headers = [
                #"Content-Type" = "application/json",
                #"x-client-key" = ClientKey,
                #"x-client-secret" = ClientSecret
            ],
            Content = Body
        ]
    ),
    Parsed = Json.Document(Response),
    Rows = Parsed[data][rows],
    Table = Table.FromList(Rows, Splitter.SplitByNothing(), {"Task"})
in
    Table

Handling keyed-object responses

Some endpoints (e.g. count-by-status) return data as an object keyed by status rather than an array. Convert with Record.ToTable:

let
    ...
    Parsed = Json.Document(Response),
    AsTable = Record.ToTable(Parsed[data])  // columns: Name (status), Value (record with count)
in
    AsTable

Scheduled Refresh in the Power BI Service

1. Publish your report to the Power BI Service
2. Open the dataset's Settings → Data source credentials
3. Edit credentials → set authentication method to Anonymous
4. Configure Scheduled refresh as normal

Important: Always use BaseUrl + RelativePath (as shown in examples) rather than a fully dynamic URL. A dynamic URL is a common cause of Service refresh failures.

Security note: Because authentication is via headers, your client secret is stored inside the dataset definition. Treat the .pbix file and published dataset as sensitive. If a secret is ever exposed, create a new key in Public Integrations and delete the old one.

Working with Large Datasets

• Always scope your pull with fromDate/toDate or other filters so queries finish comfortably under the 60-second server timeout
• Page with offset/limit — request 5,000 records at a time for template-submissions. Use meta.totalCount to know when you've retrieved everything
• Use includeItems = false for submission-level data when you don't need per-question answers — significantly lighter payloads
• Don't rely on a longer client timeout — the server cuts requests at ~60 seconds regardless of Power BI's setting

Troubleshooting

What's Not Available Through This API

• No OData feed and no dedicated Xenia Power BI connector — use the generic Web connector as described here
• No single "export everything" endpoint — pull the datasets you need from the specific endpoints above
• Computed grid report cells are only available as the Excel export (no JSON endpoint for rendered grid via API key)

For help enabling the Public API on your workspace or questions about access, contact your Xenia representative or reach out at support@xenia.team.
