Connecting Xenia Data to Power BI

Last updated: October 19, 2026

📌 Before you start

This article covers connecting Xenia data to Power BI using the Xenia API. You may also need:

Overview

Xenia exposes a JSON API that Power BI's built-in Web connector can call directly using your API key and secret — sent as request headers. No middleware, no custom connector, no third-party tool required.

What you can pull into Power BI:

  • Submission records from checklists and forms

  • Task and work order data

  • Pre-aggregated reporting analytics (completion rates, compliance, flagged items)

  • Grid report exports


Before You Begin

You will need:

Requirement

Notes

Public API enabled on your workspace

This is an add-on capability. If you don't see Settings → Public Integrations in Xenia, contact your Xenia representative to have it enabled.

Workspace Owner access

Creating API keys requires the Manage API Access Keys permission, granted to Owners by default.

Power BI Desktop

Free from Microsoft. This is where you build the connection and report. Scheduled refresh via the Power BI Service is optional.

Key things to know:

  • One key = one workspace. Each API key is permanently tied to the workspace it was created in.

  • The key acts as a specific user. The data it can access is governed by that user's role and location membership. Create a dedicated integration user with full location access for complete data.

  • Credentials are shown once. The client secret displays a single time on creation — save it immediately in a secure location. It cannot be retrieved later.


Step 1 — Create Your API Credentials

  1. In the Xenia web app, go to Settings → Public Integrations

  2. Create a dedicated integration user — e.g. powerbi-integration@yourcompany.com — with an Admin or Owner-level role and membership at all locations you want in Power BI

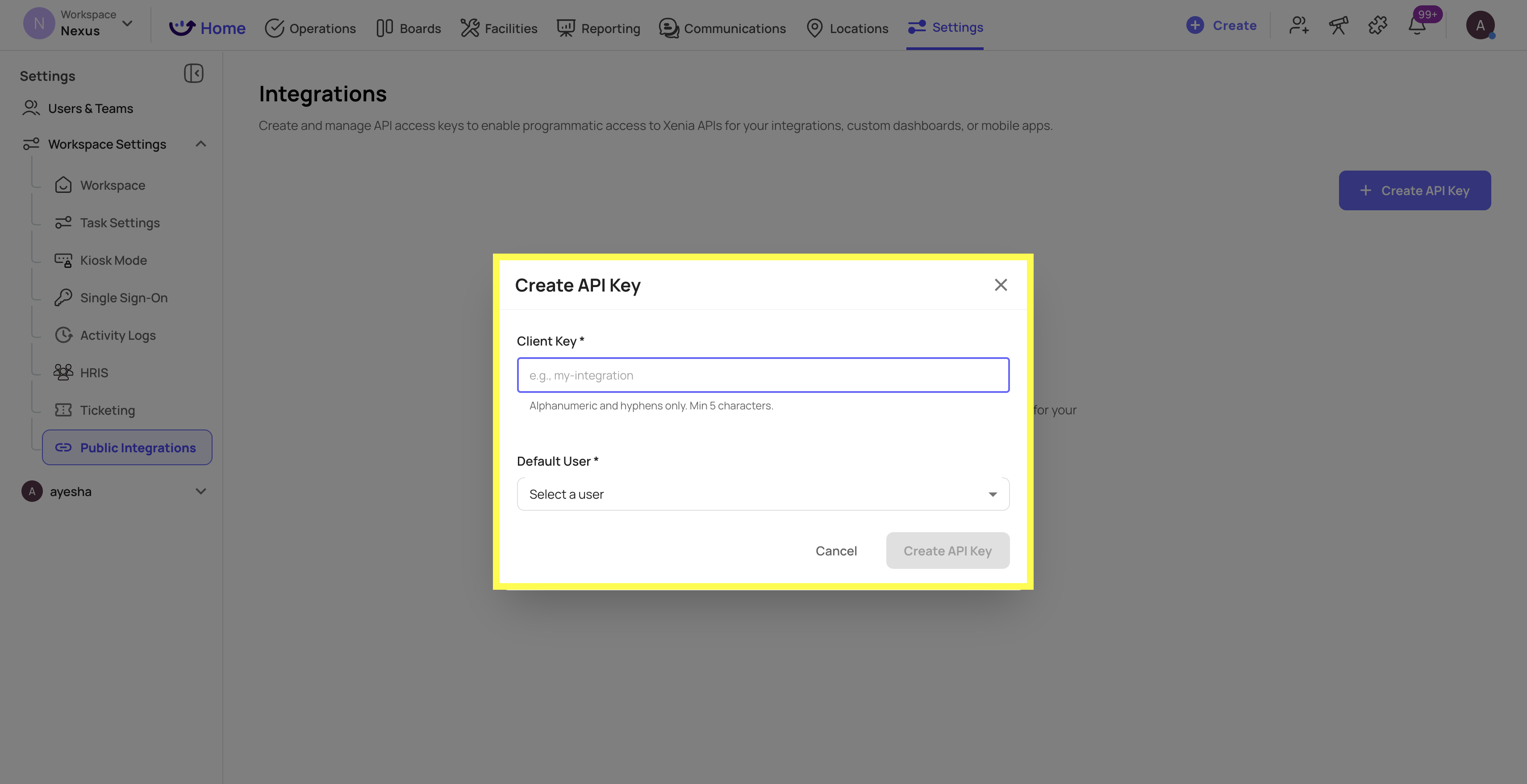

  3. In Public Integrations, click to create a new API key:

    • Enter a client key — an identifier of your choosing (letters, numbers, hyphens; minimum 5 characters), e.g. powerbi-reporting. This is your x-client-key.

    • Choose the integration user as the default user the key will act as

  4. When created, Xenia generates and displays the client secret once — copy it now and store it securely. This is your x-client-secret.

You'll also need your Workspace ID for task/work order endpoints — it's the UUID in your Xenia web address bar (app.xenia.team/workspace/**

**/...

).


Step 2 — Verify Your Credentials (Recommended)

Before opening Power BI, confirm the credentials work with a quick command-line test:



bash

curl -X POST "https://api.xenia.team/api/v1/ops/template-submissions" \
  -H "x-client-key: YOUR_CLIENT_KEY" \
  -H "x-client-secret: YOUR_CLIENT_SECRET" \
  -H "Content-Type: application/json" \
  -d '{"fromDate":"2026-01-01","toDate":"2026-01-31","limit":5}'
  • JSON response with a data array → credentials are working

  • 401 Invalid client credentials → key or secret is wrong

  • 403 Forbidden: API key not authorized for this route → check the URL path for typos


Key Facts About the API

Item

Detail

Production base URL

https://api.xenia.team/api/v1

Authentication

Two headers on every call: x-client-key and x-client-secret

Format

JSON request bodies and JSON responses

Workspace scope

Determined automatically by the key

Request timeout

~60 seconds (server-side). Always scope queries with date ranges — aim for under 55 seconds.


Available Data Endpoints

All endpoints use base URL https://api.xenia.team/api/v1.

Submission Data

What you get

Method & Path

Requires

Submission records (with answered items)

POST /ops/template-submissions

Valid key + workspace

Submission counts by status

POST /ops/submissions-count-by-status

Valid key + workspace

/ops/template-submissions request body (all optional): fromDate, toDate, checklists, statuses, locations, users, searchText, offset, limit, includeItems (set false for lighter payloads without per-question detail).

Task & Work Order Data (replace {workspaceId} with your Workspace ID)

What you get

Method & Path

Requires

Task/work order list (filtered)

POST /ops/workspaces/{workspaceId}/tasks/list

View Tasks or View Work Orders

Task catalog (list + counts)

POST /ops/workspaces/{workspaceId}/tasks/catalog

View Tasks or View Work Orders

Single task details

GET /ops/workspaces/{workspaceId}/tasks/{taskId}/details

Valid key (task must be visible to user)

Reporting Analytics (all POST, all require View Reporting capability)

What you get

Path

Task count by status

/ops/reports/tasks/count-by-status

Task count by assignee

/ops/reports/tasks/count-by-assignees

Task count by category

/ops/reports/tasks/count-by-categories

Weekly completion

/ops/reports/tasks/weekly-completion

Schedule completion by location

/ops/reports/tasks/schedule-completion-by-location

On-time vs. late submission by location

/ops/reports/tasks/on-time-late-submission-by-location

Daily compliance

/ops/reports/tasks/daily-compliance

Filter field names differ by endpoint — an unrecognized field name is silently ignored (no error, just unfiltered results). Match field names exactly from the endpoint documentation.

Grid Reports (requires Advanced Dashboards + View Reporting)

What you get

Method & Path

List saved grid reports

GET /mgt/grid-reports

Export a grid report view

GET /mgt/grid-report-views/{viewId}/spreadsheet (returns .xlsx)

Note: the spreadsheet endpoint returns an Excel file, not JSON. For live/refreshable reporting, the JSON endpoints above are the better choice.


Step 3 — Connect from Power BI

Because the Xenia API uses custom headers (not a built-in Power BI auth type), set the connection's credential type to Anonymous — authentication travels in the headers themselves.

Store credentials as parameters (recommended)

  1. In Power BI Desktop: Home → Transform data to open Power Query Editor

  2. Manage Parameters → New Parameter. Create two Text parameters:

    • ClientKey — paste your client key

    • ClientSecret — paste your client secret

  3. Optionally create a WorkspaceId parameter


Example A — Submission records (most common)

powerquery

let
    BaseUrl = "https://api.xenia.team",
    Body = Json.FromValue([
        fromDate = "2026-01-01",
        toDate = "2026-01-31",
        limit = 5000,
        offset = 0
    ]),
    Response = Web.Contents(
        BaseUrl,
        [
            RelativePath = "/api/v1/ops/template-submissions",
            Headers = [
                #"Content-Type" = "application/json",
                #"x-client-key" = ClientKey,
                #"x-client-secret" = ClientSecret
            ],
            Content = Body
        ]
    ),
    Parsed = Json.Document(Response),
    Rows = Parsed[data],
    Table = Table.FromList(Rows, Splitter.SplitByNothing(), {"Submission"})
in
    Table

When prompted for credentials, choose Anonymous and Connect. Then expand the column to flatten submission fields.


Example B — GET endpoint (list grid reports)

powerquery

let
    BaseUrl = "https://api.xenia.team",
    Response = Web.Contents(
        BaseUrl,
        [
            RelativePath = "/api/v1/mgt/grid-reports",
            Headers = [
                #"x-client-key" = ClientKey,
                #"x-client-secret" = ClientSecret
            ]
        ]
    ),
    Parsed = Json.Document(Response),
    Reports = Parsed[data][gridReports],
    Table = Table.FromList(Reports, Splitter.SplitByNothing(), {"Report"})
in
    Table

Example C — Task list (POST, Workspace ID in path)

powerquery

let
    BaseUrl = "https://api.xenia.team",
    Body = Json.FromValue([]),
    Response = Web.Contents(
        BaseUrl,
        [
            RelativePath = "/api/v1/ops/workspaces/" & WorkspaceId & "/tasks/list",
            Headers = [
                #"Content-Type" = "application/json",
                #"x-client-key" = ClientKey,
                #"x-client-secret" = ClientSecret
            ],
            Content = Body
        ]
    ),
    Parsed = Json.Document(Response),
    Rows = Parsed[data][rows],
    Table = Table.FromList(Rows, Splitter.SplitByNothing(), {"Task"})
in
    Table

Handling keyed-object responses

Some endpoints (e.g. count-by-status) return data as an object keyed by status rather than an array. Convert with Record.ToTable:

powerquery

let
    ...
    Parsed = Json.Document(Response),
    AsTable = Record.ToTable(Parsed[data])  // columns: Name (status), Value (record with count)
in
    AsTable

Scheduled Refresh in the Power BI Service

  1. Publish your report to the Power BI Service

  2. Open the dataset's Settings → Data source credentials

  3. Edit credentials → set authentication method to Anonymous

  4. Configure Scheduled refresh as normal

Important: Always use BaseUrl + RelativePath (as shown in examples) rather than a fully dynamic URL. A dynamic URL is a common cause of Service refresh failures.

Security note: Because authentication is via headers, your client secret is stored inside the dataset definition. Treat the .pbix file and published dataset as sensitive. If a secret is ever exposed, create a new key in Public Integrations and delete the old one.


Working with Large Datasets

  • Always scope your pull with fromDate/toDate or other filters so queries finish comfortably under the 60-second server timeout

  • Page with offset/limit — request 5,000 records at a time for template-submissions. Use meta.totalCount to know when you've retrieved everything

  • Use includeItems = false for submission-level data when you don't need per-question answers — significantly lighter payloads

  • Don't rely on a longer client timeout — the server cuts requests at ~60 seconds regardless of Power BI's setting


Troubleshooting

Symptom

Likely Cause

Fix

401 Invalid client credentials

Wrong key/secret, or key deactivated

Re-check values; create a new key if needed

401 Client does not belong to this workspace

Workspace ID in URL doesn't match the key's workspace

Use the correct Workspace ID

403 Forbidden: API key not authorized for this route

Path/method isn't API-key-enabled, or typo

Match path exactly against the endpoint list

Permission error despite valid key

Integration user lacks required permission (View Reporting, Advanced Dashboards)

Grant the needed role/capability to the integration user

504 / request times out

Query exceeded ~60s server limit

Narrow date range, add filters, or page results

Scheduled refresh fails in Service

Fully dynamic URL, or credentials not set to Anonymous

Use BaseUrl + RelativePath pattern; set credentials to Anonymous


What's Not Available Through This API

  • No OData feed and no dedicated Xenia Power BI connector — use the generic Web connector as described here

  • No single "export everything" endpoint — pull the datasets you need from the specific endpoints above

  • Computed grid report cells are only available as the Excel export (no JSON endpoint for rendered grid via API key)


For help enabling the Public API on your workspace or questions about access, contact your Xenia representative or reach out at support@xenia.team.
